  • Bundu Power 500W 48V Solar Pool Pump

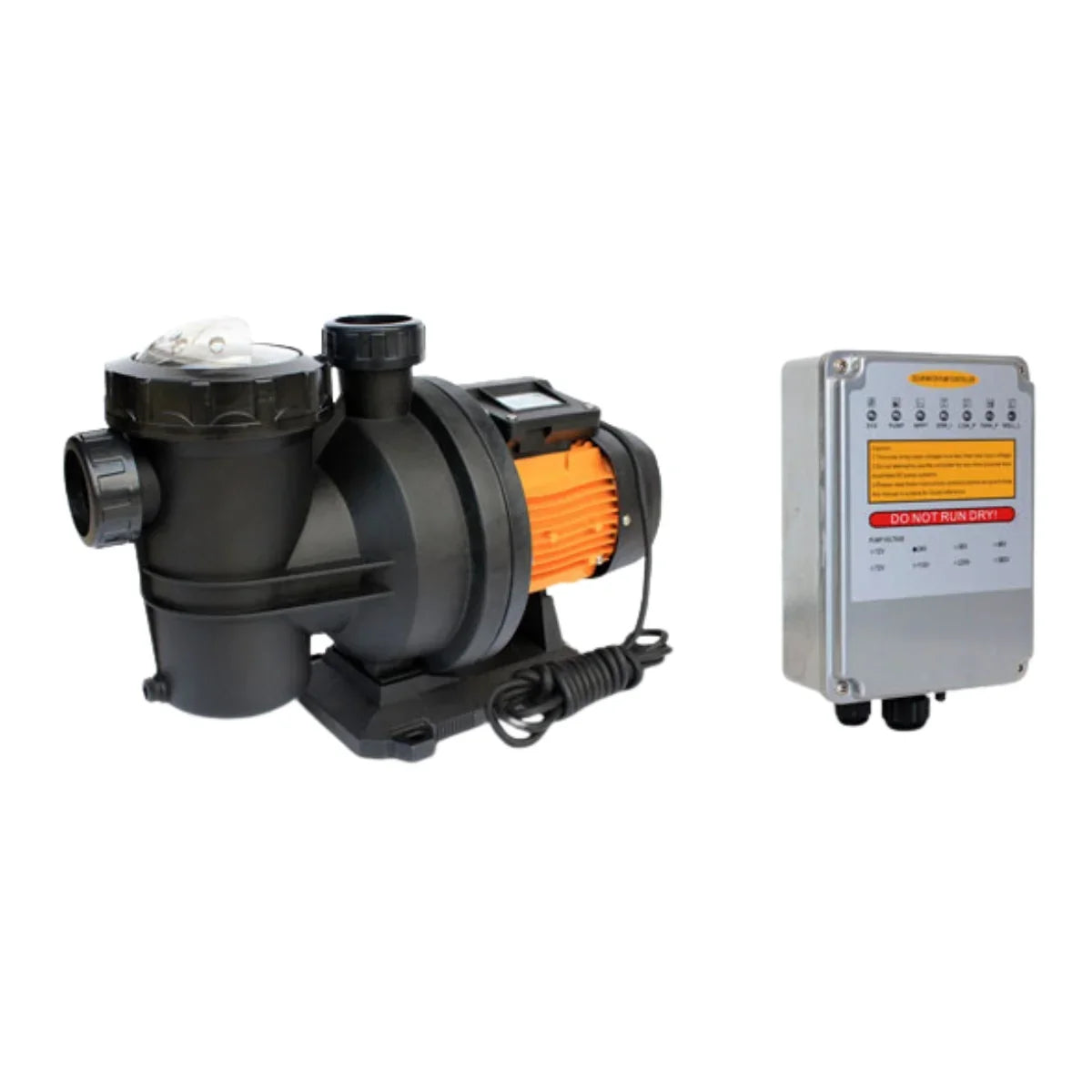

Bundu Power 500W 48V Solar Pool Pump

R 10,000.00 ZAR
R 10,000.00 ZAR
Tax included. Shipping calculated at checkout.

I agree with Terms & Conditions
Wishlist
Compare
Share

Share:

  • Pinterest
  • Instagram
  • Facebook
  • Twitter
https://doitsolar.co.za/pro...
Thanks! We will send you a notification when the variant becomes available!
Vendor:
Sunalix
Availability:
In stock
Category:
Bundu Power 500W 48V Solar Pool Pump

Bundu Power 500W 48V Solar Pool Pump
R 10,000.00 ZAR
R 10,000.00 ZAR

FEATURES

  • 100% OFF GRID Solution
  • NO Batteries or AC Required
  • NO Timers required
  • Variable Speed DC Motor
  • MPPT Controller
  • Pool water to be turned twice in 24 Hours
  • 17.0m³ x 5.5Hrs p/day = (93.5m³/2) = 46,750 Ltrs
  • 50mm Inlet / 50mm Outlet
Model JP17-15-500
Litres Per Minute L
Max. flow rate (m³/h) 17.0
Max. flow rate (Litres/h) 17,000
Max. Pool Size 46,750 Litres
Max. Head (m) 15
Ambient Temp -30 to +45
Input voltage 48v DC
Type of enclosure IP54
Max. power input (W) 500
Class of insulation F
Suction Inlet Lift 3.0 m
Max. casing pressure 2.5 bar
Max. water temp +60 °C
Controller Input 48V - 100V (VoC)
Impeller

SOLAR PANEL RECOMMENDATIONS

PANELS VOLTAGE (VMP) QTY
545 Watts 49.4 V 2

PACKED DIMENSIONS

Length 520 mm
Width 220 mm
Height 350 mm
Weight 17 kgs

What is included:

  • 1 x Bundu Power 2 Way Pump Box

PLEASE NOTE: Submersible Cabler (6mm 3 Core) sold separately.

KEY ASSUMPTIONS

  • Your pool water should be turned twice in a 24 hour period
  • This pump will drive most pool cleaners
  • Max pool size: (Flow Rate * 6Hrs per day) / 2 = Pool Size
  • Higher head = less suction for pool cleaner
  • Pump will start from sun-up to sun-down daily

How to determine Pool size

  • Width (m) x Length (m) x Average Depth (m) x 1000 = Litres
  • I.e.: 5m x 3m x 1.2m = 19.2m x 1000 = 19 200 Litres
  • Pump size determined by rotating water twice in a 24 Hour period. Calculated on
  • 6 hours at maximum pumping capacity per day.
  • This pump is a replacement for your existing pool pump and it will work with your pool cleaner. It does not heat water.

PLEASE NOTE: Exceeding the recommended Input Voltage () to the controller can damage the controller and void your warranty. Please ensure the correct panel configuration before connecting the pump controller.
