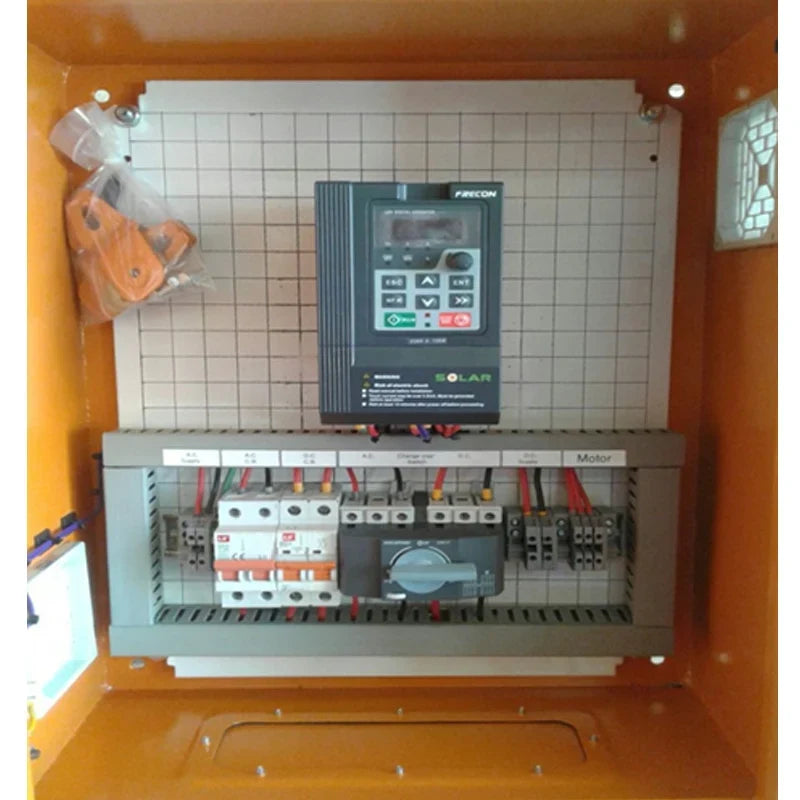

Frecon 0.55kW 3PH 220V Pump VSD PV Starter Kit

R 10,000.00 ZAR
R 10,000.00 ZAR
Tax included. Shipping calculated at checkout.

I agree with Terms & Conditions
Wishlist
Compare
Share

Share:

  • Pinterest
  • Instagram
  • Facebook
  • Twitter
https://doitsolar.co.za/pro...
Thanks! We will send you a notification when the variant becomes available!
Vendor:
Sunalix
Availability:
In stock
Category:
Frecon 0.55kW 3PH 220V Pump VSD PV Starter Kit

Frecon 0.55kW 3PH 220V Pump VSD PV Starter Kit
R 10,000.00 ZAR
R 10,000.00 ZAR

Technical Specifications

  • Product Code: M1-PV-0.55-220V.
  • Adaptive Motor kW: 0.55.
  • Max Motor Rating: 4.2A.
  • Dimensions (HxWxD): 450mm x 300mm x 220mm.
  • Recommended Solar Panels: 5 X 280W (65V) Panels.

Input specification

  • PV Input
  • Maximum Input DC: Voltage 400VDC.
  • Recommended Voc Range: 320 - 370VDC.
  • Recommended MPPT Voltage Range: 250 - 350VDC.
  • Starting Voltage Range: 80 - 450VDC.

Grid or backup generator input

  • Input voltage: Single phase 220V (-15% to 30%).

Output specification

  • Rated output voltage: 3PH 220V.
  • Output frequency: 0 - 600.00Hz（default: 0～50.00Hz）.

Protection

  • Over-current.
  • Overvoltage.
  • Output phase-lose.
  • Under-load.
  • Under-voltage.
  • Short circuit.
  • Overheating.
  • Water pump run.
