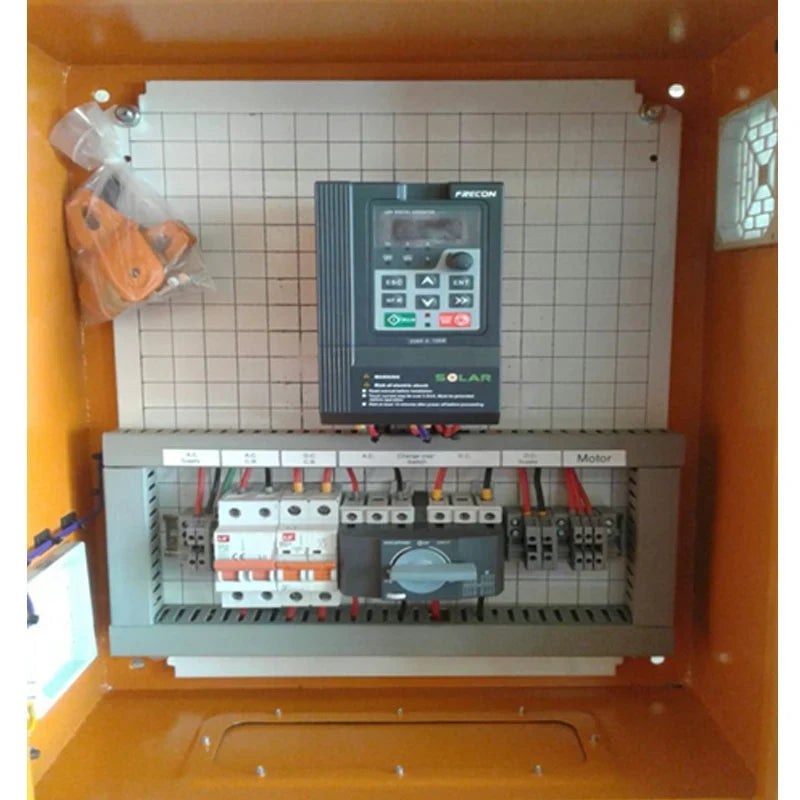

Frecon 1.1kW 3PH 220V Pump VSD PV Starter Kit

R 110,001.00 ZAR
R 110,001.00 ZAR
Tax included. Shipping calculated at checkout.

I agree with Terms & Conditions
Wishlist
Compare
Share

Share:

  • Pinterest
  • Instagram
  • Facebook
  • Twitter
https://doitsolar.co.za/pro...
Thanks! We will send you a notification when the variant becomes available!
Vendor:
Sunalix
Availability:
In stock
Category:
Frecon 1.1kW 3PH 220V Pump VSD PV Starter Kit

Frecon 1.1kW 3PH 220V Pump VSD PV Starter Kit
R 110,001.00 ZAR
R 110,001.00 ZAR

Technical Specifications

  • Product Code: M1-PV-1.1-220V.
  • Adaptive Motor kW: 1.1.
  • Max Motor Rating: 9.5A.
  • Dimensions (HxWxD): 450mm x 300mm x 220mm.
  • Recommended Solar Panels: 10 X 275W (37V) Panels

Input specification

  • PV Input
  • Maximum Input DC: Voltage 400VDC.
  • Recommended Voc Range: 320 - 370VDC.
  • Recommended MPPT Voltage Range: 250 - 350VDC.
  • Starting Voltage Range: 80 - 450VDC.

Grid or backup generator input

  • Input voltage: Single phase 220V (-15% to 30%).

Output specification

  • Rated output voltage: 3PH 220V.
  • Output frequency: 0 - 600.00Hz（default: 0～50.00Hz）.

Protection

  • Lighting Protection.
  • Over-current.
  • Overvoltage.
  • Output phase-lose.
  • Under-load.
  • Under-voltage.
  • Short circuit.
  • Overheating.
  • Water pump run.

Important:

All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
