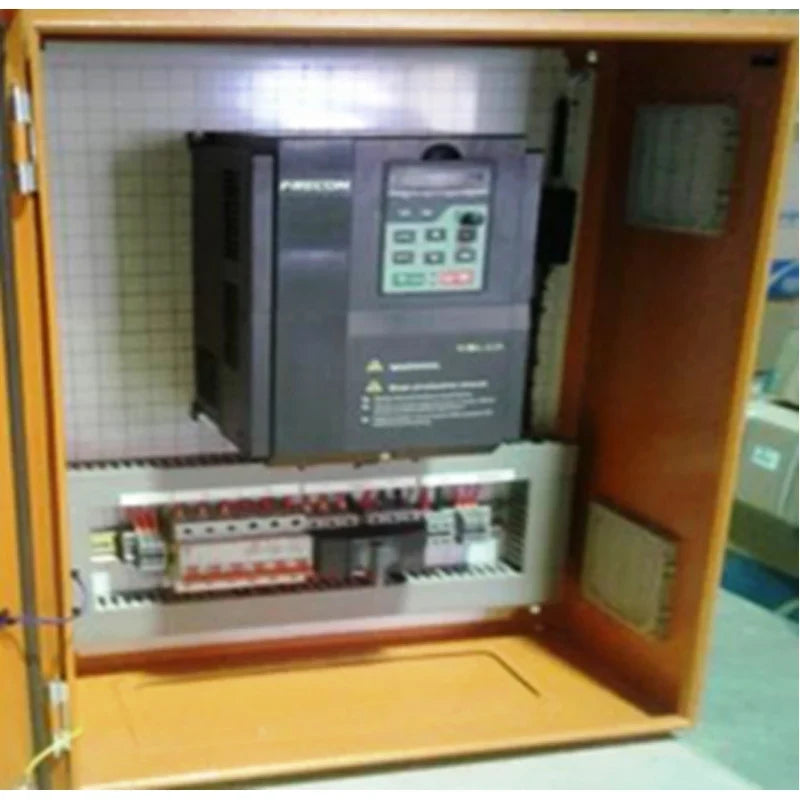

Frecon 11.0kW 3PH 380V Pump VSD PV Starter Kit

Frecon 11.0kW 3PH 380V Pump VSD PV Starter Kit
R 34,000.00 ZAR
R 34,000.00 ZAR

Please check pricing and stock availability with us on this product. Prices note pricing excludes delivery.

Technical Specifications

  • Product Code: M1-PV-11.0- 400V.
  • Adaptive Motor kW: 11.0.
  • Max Motor Rating: 25.0A.
  • Dimensions (HxWxD): 450mm x 300mm x 220mm.
  • Recommended Solar Panels: 64 X 335W (36V).

Input specification PV Input

  • Maximum Input DC: Voltage 800VDC.
  • Recommended Voc Range: 500 - 750VDC.
  • Recommended MPPT Voltage Range: 450 - 600VDC.
  • Starting Voltage Range: 230 - 800VDC.

Grid or backup generator input

  • Input voltage: Three phase 380V (-15% to 30%).

Output specification

  • Rated output voltage: 3PH 380V.
  • Output frequency: 0 - 600.00Hz（default: 0～50.00Hz）.

Protection

  • Lighting Protection.
  • Over-current.
  • Overvoltage.
  • Output phase-lose.
  • Under-load.
  • Under-voltage.
  • Short circuit.
  • Overheating.
  • Water pump run.

Important:

All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
