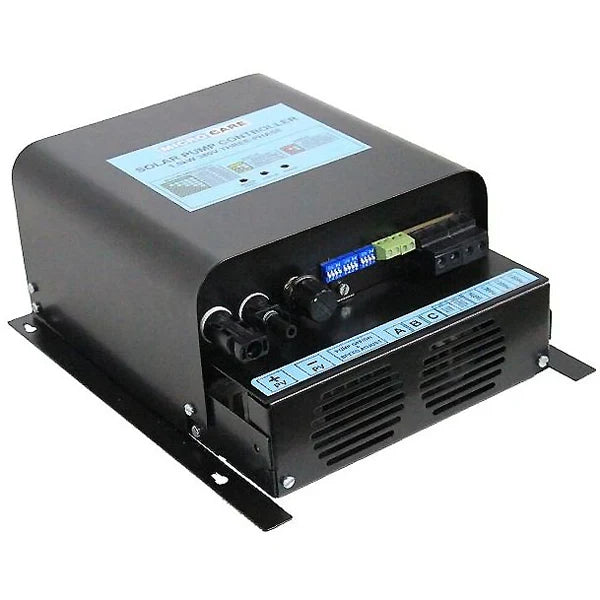

Microcare Portable 5.5kW 380V-220V Solar Pump Inverter

R 9,000.00 ZAR
R 9,000.00 ZAR
Tax included. Shipping calculated at checkout.

I agree with Terms & Conditions
Wishlist
Compare
Share

Share:

  • Pinterest
  • Instagram
  • Facebook
  • Twitter
https://doitsolar.co.za/pro...
Thanks! We will send you a notification when the variant becomes available!
Vendor:
Sunalix
Availability:
In stock
Category:
Microcare Portable 5.5kW 380V-220V Solar Pump Inverter

Microcare Portable 5.5kW 380V-220V Solar Pump Inverter
R 9,000.00 ZAR
R 9,000.00 ZAR

Features
 • Surge Protection.
 • Input Voltage of 450Vdc - 1000 Vdc.
 • Compatible with any three-phase 380V motors.
 • LED status feedback.
 • High - Low water probes.
 • Float switch input.
 • Trip and restart controls.
 • Built in Variable Speed Drive (VSD).
 • Unique overdrive feature allows lower PV Voltage operation.
 • IP44 rated.
 • No external enclosure box required.
 • Cost effective installation.

Technical
 • Model - 5.5kW/380V Three-Phase.
 • PV Voc Range - 600V - 850V.
 • PV Vmp Range - 450V – 650V.
 • Recommended PV Vmp (Max Efficiency) - 550V.
 • Rated Output Power - 5.5kW.
 • Frequency Range - 5Hz - 65Hz (Programmable).
 • Ambient Temp Range - 0 - 40ºC.
 • Protection - Overload, Short Circuit, Over Temperature, Under Voltage, Over Voltage, Surge Protection.
 • Dimensions (H x W x D) - 285mm x 240mm x 120mm.
 • Warranty - 1 year.

Important:

All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
