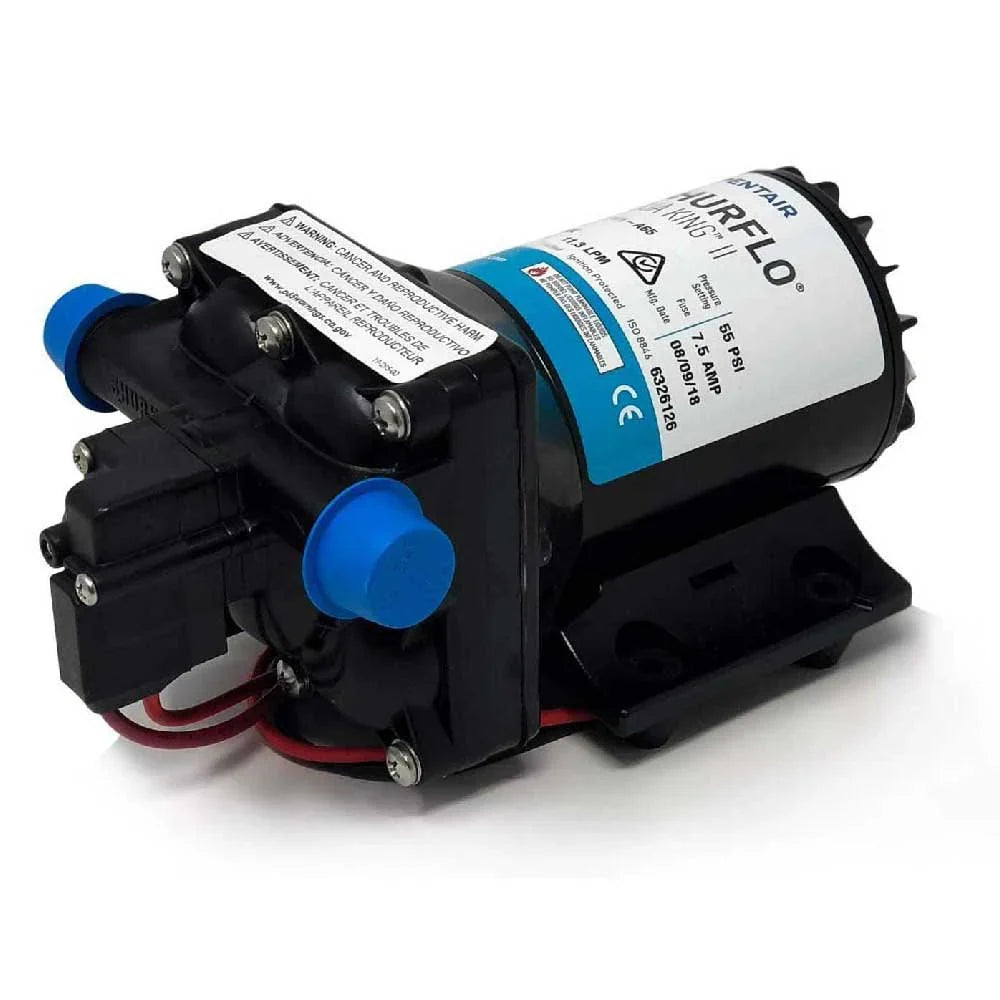

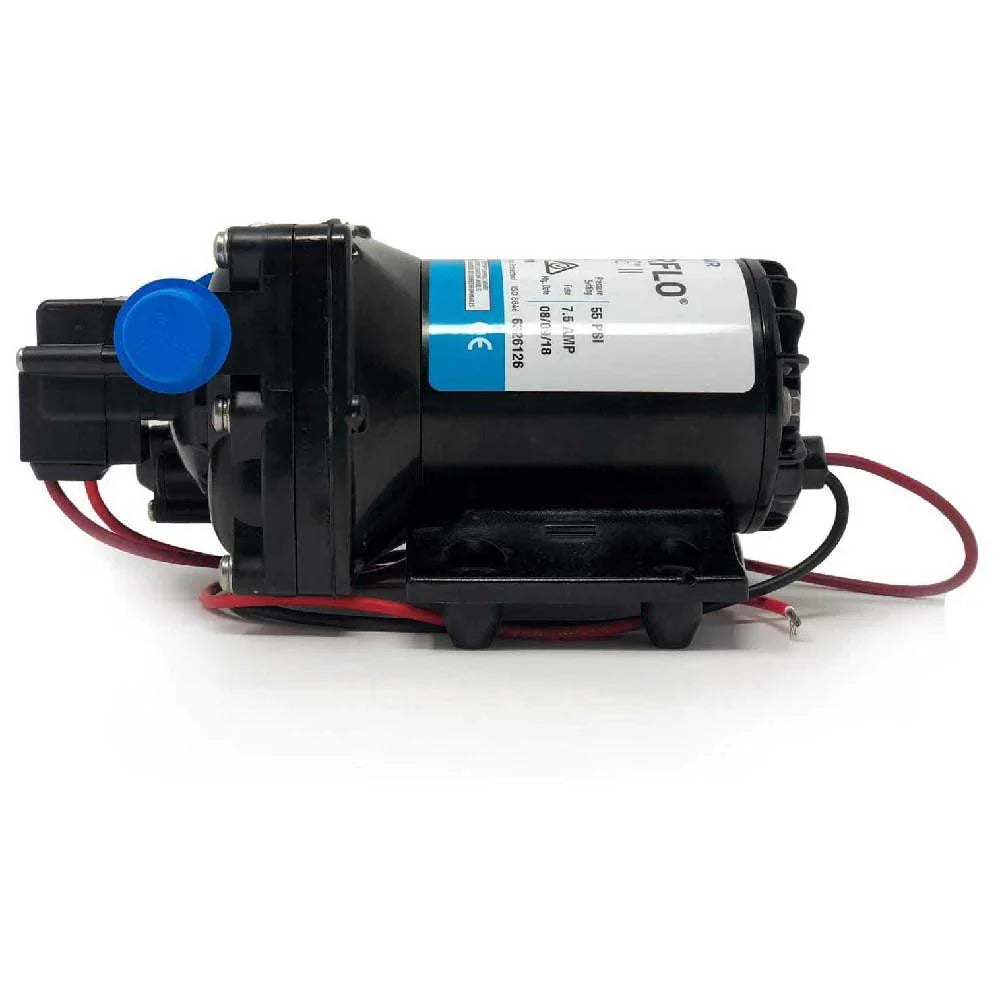

Shurflo Aqua King Standard 12V Fresh Water Pump

PUMP DESIGN:

• Type: 4 Chamber Diaphragm pump
• Ports: ½”-14 NPSM-Male
• Liquid: 54°C [130°F] Max
• Dry-Prime: 1.82 M [6 feet]
• Run Dry: Yes
• Inlet Pressure: 2.06 Bar [30 PSI]

ELECTRICAL:

• Motor: 12V DC Permanent Magnet, Intermittent Duty
• Protection: Thermal Overload, Automatic Restart
• Leads: 14 AWG, 37cm [14 ¾”] Red +, 38cm [15”] Black
• Fuse: 7.5 Amp Recommended
• Control: Shut-Off 3.1 Bar [45 PSI] ± 0.13 Bar [2 PSI]
• Re-start 2.4 Bar [35 PSI] [1.0 Bar] ± [2 PSI]
• Maximum By-Pass 3.5 Bar [52 PSI]
• ± 0.13 Bar [2 PSI]

MATERIALS OF CONSTRUCTION:

• Housings: Polypro
• Valves/Seals: EPDM
• Diaphragm: Santoprene
• Hardware: Stainless Steel
