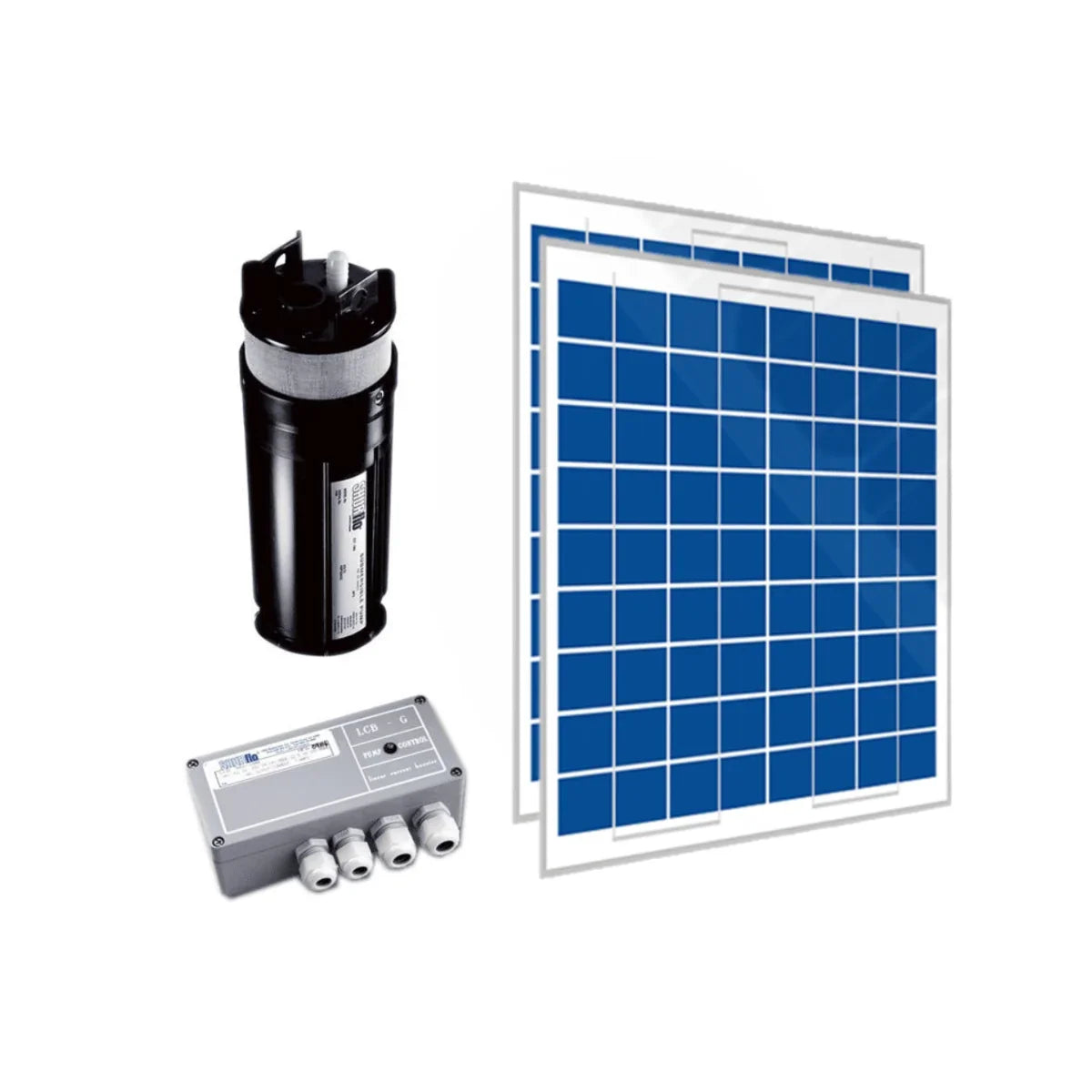

This kit consists of the following components 1 x Shurflo 9325-043-101 24V Submersible DC Pump SHURflo's 9300 series pump offers a solution to your remote water needs. It's rugged, durable and built to last. This pump delivers a steady 1.0 GPM operation at 100 PSI maximum at 70.1 m. It incorporates a unique waterblocked cable connector that is impervious to water leakage and condensation problems preventing waterwicking. Great for applications in livestock watering, irrigation, ponds, islands, remote homes and cabins.
Technical Specifications
- Max. Flow (LPH): 300.
- Amps: 4.6.
- Volts: 24.
- Max. Suction Lift (m.): 70m
- Discharge Port (in.): 1/2" hose barb.
- Pump Housing: Stainless steel fasteners.
- Dimensions L x W x H: 96mm x 96mm x 305mm.
2 x Cinco 80W Solar Panels
Specifications
- Rating: 80W
- Efficiency: 15.5%
- Width: 680mm
- Height: 760mm
- 36 Cell Polycrystalline Solar Panel
- Rigorous quality control meeting highest international standards
- High-transmissivity low-iron tempered glass, strong aluminium frame using UV-resistant silicon.
- Aesthetic appearance with excellent efficiency based on innovative photovoltaic technologies.
- 10 years limited product warranty
- 10 years @ 90% of the minimal rated power output
- 25 years @ 80% of the minimal rated power output
Mechanical Parameters
- Module dimension (nm) - 837mm x 659mm x 34mm.
- Matrix (nm) - 9 x 4.
- Solar cell Type (nm) - Multi crystalline cells.
- Front Cover (nm) - 3.2mm Thick Low iron tempered glass.
- Frame Material (mm) - Silver Anodized Aluminium Alloy.
- Junction Box (nm) - 3 Rail.
Shurflo 12V- 24V DC Pump Controller 902-200 LCB-75
Boost youic panels, into a combination that is better matched to that needed by the pump.
